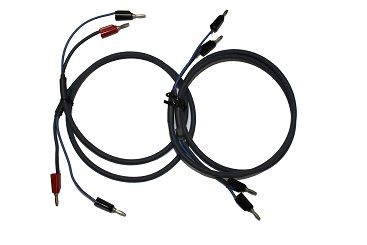

TL-1M-Ban-15kV High Voltage Shielded Lead Set

  • High voltage Coaxial lead set designed for use up to 15 kVdc.
  • The leads consist of a pair of 4 foot coaxial cables terminated in bananas on both ends.
  • Silicon Insulation
  • Silver coated copper conductor
Priced at
$960.00

High voltage lead set designed for use up to 15 kVdc. The TL-1M-Ban-15kV is ideal for use with the HRRS-5 kV & 10 kV Series - High Resistance Decade Boxes, VRS-100 High Resistance Standard, SRL Resistance Standards and other high resistance standards.

These leads are suitable for a variety of applications where high voltage and low leakage cables are required. The cables feature banana plugs for connection to a variety of test equipment including megohmmeters.

The leads consist of a pair of 4 foot coaxial cables terminated in stackable bananas on both ends. The cables utilize R5743-1 coaxial cable that is rated for 15 kVdc. The coaxial cable is made up of a center conductor that is 20 AWG (19/32) silver coated copper with silicone insulation and a tinned copper braided shield with black silicon jacket.



Specifications:

Quantity: 1 pair
Length: 4 foot each
Connectors: Stackable Bananas
Max. Voltage Rating of Cable: 15 kVdc
Nom. Capacitance: 50 pF/ft
Nom. Impedance: 52 ohms at 1 MHz.
Max.Operating Temp: 185 °F (85 °C)
